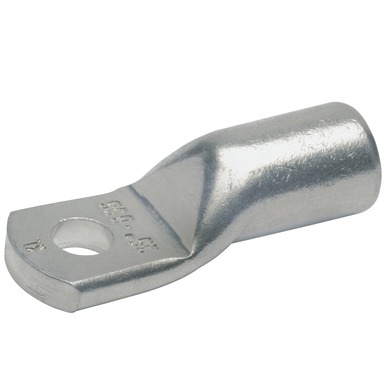

Cosses tubulaires à plage étroite

Voir les réferences

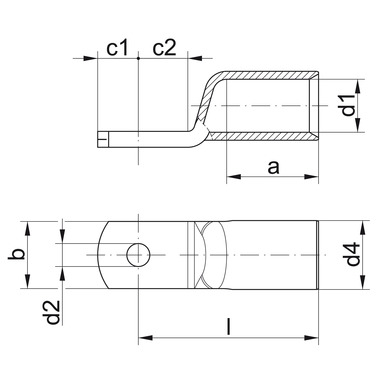

Référence	Section	Alésage	Dimensions mm								Poids	Condt	Panier
	mm²	Ø	d1	a	b	d2	d4	c1	c2	l	≈ kg	pcs
cpe35m6	35	m6	8.5	17	15	6.5	12	7.5	7.5	32	1.780	25	- +
cpe50m6	50	m6	10	19	15	6.5	14	10	10	37	2.950	25	- +
cpe50m8	50	m8	10	19	17	8.5	14	10	10	37	2.820	25	- +
cpe50m10	50	m10	10	19	19	10.5	14	11.5	12	39	3.080	25	- +
cpe70m6	70	m6	12	21	17	6.5	16.5	10	10	43	4.220	25	- +
cpe70m8	70	m8	12	21	17	8.5	16.5	10	10	43	4.100	25	- +
cpe70m10	70	m10	12	21	19	10.5	16.5	11.5	12	44	4.450-2	25	- +
cpe70m12	70	m6	12	21	19	13	16.5	13	13	46	4.220	25	- +
cpe95m6	95	m6	13.5	25	19	6.5	18	11.5	12	48	5.490	25	- +
cpe95m8	95	m8	13.5	25	19	8.5	18	11.5	12	48	5.460	25	- +
cpe95m10	95	m10	13.5	25	19	10.5	18	11.5	13	48	5.130	25	- +
cpe95m12	95	m12	13.5	26	19	13	18	13	13	49	5.150	25	- +
cpe120m6	120	m6	15	26	19	6.5	19.5	11.5	14	51	6.160	10	- +
cpe120m8	120	m8	15	26	19	8.5	19.5	11.5	14	51	5.940	10	- +
cpe120m10	120	m10	15	26	19	10.5	19.5	11.5	14	51	5.810	10	- +
cpe120m12	120	m12	15	26	19	13	19.5	14	14	51	5.920	10	- +
cpe150m6	150	m6	16.5	30	19	6.5	21	11.5	14	56	6.850	10	- +
cpe150m8	150	m8	16.5	30	19	8.5	21	11.5	14	56	6.800	10	- +
cpe150m10	150	m10	16.5	30	19	10.5	21	11.5	14	56	6.750	10	- +
cpe150m12	150	m12	16.5	30	19	13	21	15	15	57	7.150	10	- +
cpe185m10	185	m10	19	30	19	10.5	24	11.5	18	65	10.590	10	- +
cpe185m12	185	m12	19	30	19	13	24	18	18	65	11.090	10	- +
cpe185m16	185	m16	19	30	19	17	24	18	18	65	9.760	10	- +
cpe240m10	240	m10	21	35	31	10.5	26	11.5	19	72	12.700	5	- +
cpe240m12	240	m12	21	35	31	13	26	21.5	19	72	13.720	5	- +
cpe240m16	240	m16	21	35	31	17	26	21.5	19	72	13.280	5	- +
cpe300m10	300	m10	23.4	44	31	10.5	30	11.5	24	87	19.700	5	- +
cpe300m12	300	m12	23.4	44	31	13	30	24	24	87	22.720	5	- +
cpe300m16	300	m16	23.4	44	31	17	30	24	24	87	22.500	5	- +
